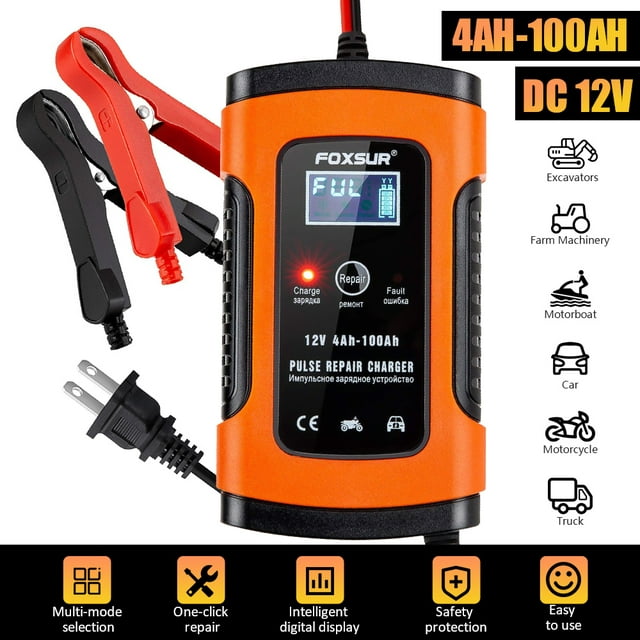

Our 12V 5A microprocessor controlled car battery charger can automatically monitor the whole charging process of all type of 12V 4Ah - 100Ah lead-acid batteries including AGM, GEL, flooded (Wet), calcium type deep cycle and VRLA maintenance free lead acid batteries with 3-stage charge process (constant current, constant voltage and float charge). And it can enter into pulse repair function to restore loss batteries when your press the “Repair” button. Additionally, the value of charge voltage, charge current, inside temperature, winter mode, battery full, summer mode and winter mode after automatic environment detection and battery full can be shown on the LCD screen display by turns. And it is built-in multiple security protections such as reverse polarity, overcharging, over-current, short-circuits, overheating etc. for a safe use.
Specifications
Product Type: Car Battery Charger
Material: ABS
Battery Type: Fit for All Type of 12V AGM, GEL, Flooded (Wet), Calcium Type Deep Cycle and VRLA Maintenance Free Lead Acid Batteries
Input Voltage: 100-240V AC, 50-60Hz
Input Current: 0.5A (RMS)@230VAC
Charge Current: 5 Amp
Rated Output: 12V DC, 5-6A Max
Battery Capacity: 4Ah - 100Ah
Charge Voltage: Summer Mode: 14.4V; Normal Mode: 14.7V; Winter Mode: 15.5V
Operate Temperature: -20℃ ~ +45℃(-4℉~113℉)
Cooling: Fan
Item Size:
Car Battery Charger: 3.35in x 2.36in x 5.91in (L x W x H)
Input Cable Length: 25.6in
Output Cable Length: 20.47in
Item Weight: 0.88lbs
Packaging Size: 4.53in x 2.56in x 8.46in (L x W x H)
